The orbital welding machine provided by KEPUNI, it can cut off the contact between the human body and light radiation, to reduce the use requirements of welders through the automatic parameters of the expert database so that novices can quickly weld high-quality welding seam and the post-processing of welded pipes is extremely simple to reduce the pollution caused by more than 80% of the environment.

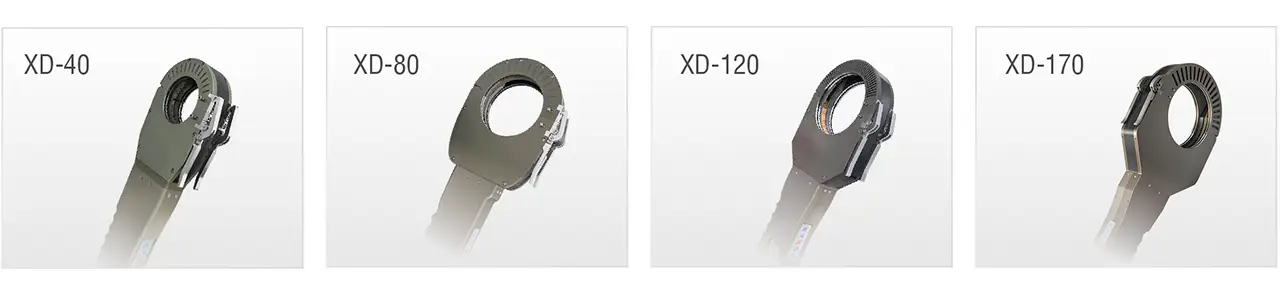

Optional welding head: 5H/10H/40/80/120/170
Welded pipe diameter: 3.175mm~168mm
Welding wall thickness: 0.5 mm ~3 mm
Welding intervals: 12 welding intervals are fine-tuned to ensure higher quality for each weld
Parameter printing: Real-time parameters are provided for each welding interval to optimize welding results later
KEPUNI Closed Orbital Welding Head System The KEPUNI closed orbital welding head system prioritizes operator
safety and weld quality by integrating automated parameter control and a
sealed design. By eliminating direct exposure to light radiation and
reducing reliance on skilled welders, the system enables novice

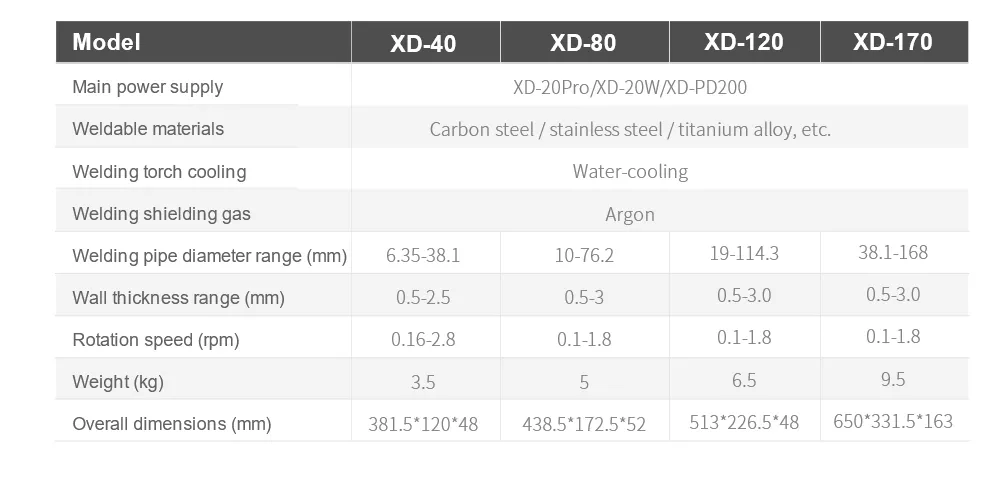

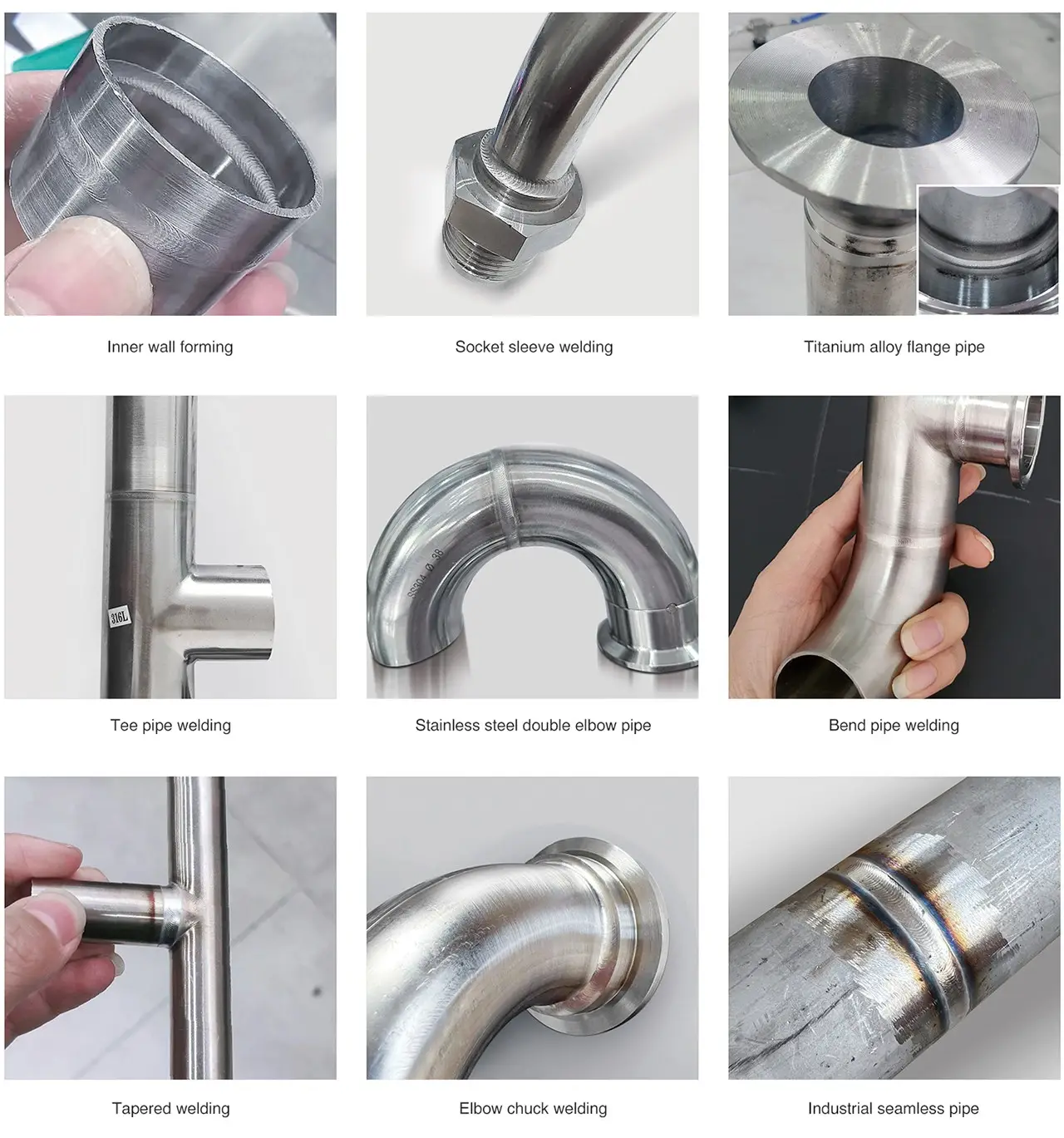

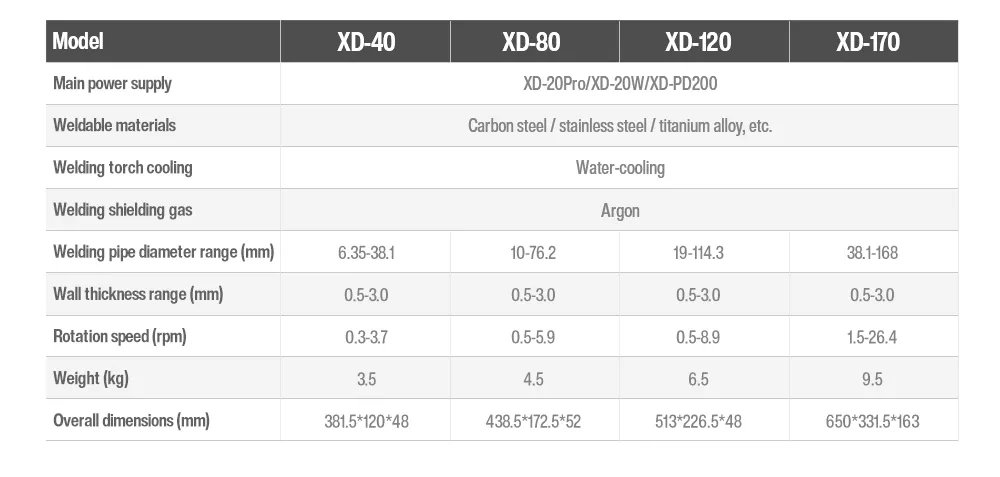

operators to achieve high-quality welds with minimal post-processing Key Specifications: Pipe Diameter Range: 6.35 mm – 168 mm Wall Thickness: 0.5 mm – 3 mm Welding Intervals: 12 precision-tuned intervals ensure consistent bead quality across diverse joint geometries. Optional Welding Heads:40, 80, 120, 170 (customizable for specific applications). Advanced Features: Automated Parameter Database Sealed Enclosure Design Real-Time Parameter Logging Low-Residue Post-Processing Applications: Aerospace: Welds thin-walled titanium and aluminum alloy tubing. Nuclear Power: Joins corrosion-resistant alloy pipes in primary coolant systems. Chemical Processing: Repairs high-pressure stainless steel piping in reactor vessels.
Pre-loaded expert parameters
adjust welding voltage, current, and speed in real time, eliminating
manual calibration and reducing training time by 70%.
Encloses the welding arc to block harmful UV/IR radiation and fumes, meeting OSHA and EN 169 standards for operator safety.
Records welding data (voltage, current, travel speed) for each interval, enabling post-weld analysis and quality audits.
Minimizes spatter and oxidation, simplifying cleaning and reducing hazardous waste generation.
